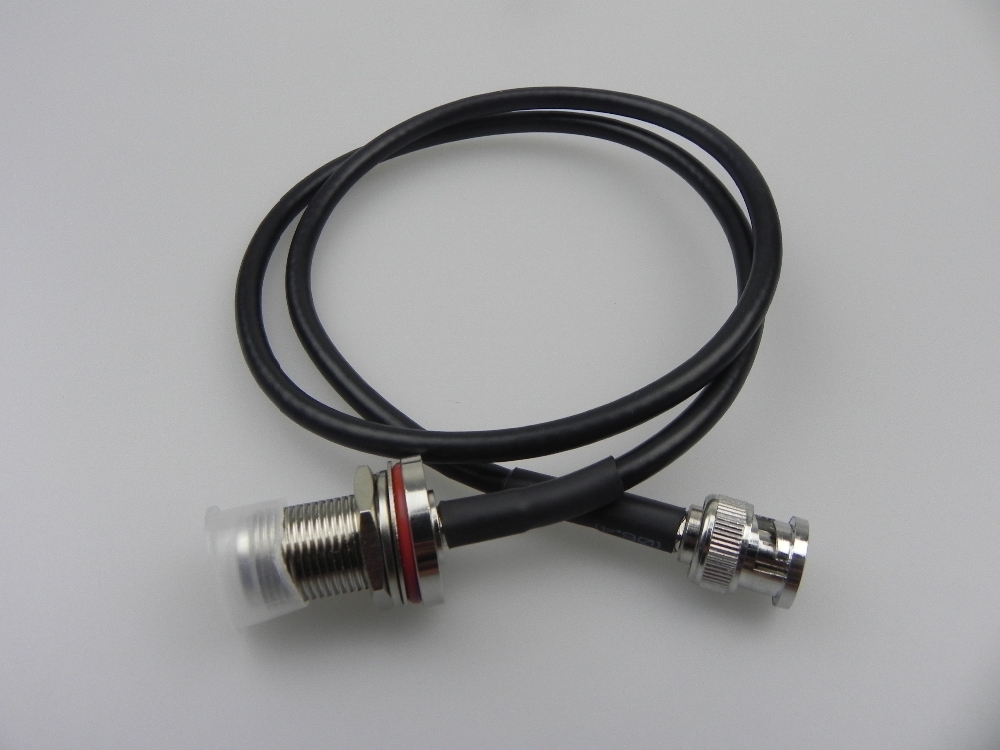

Brass Antenna Jump Pigtail RF Coaxial Cable with TNC Connector
Production Introduction:
BNC Male Cable Assemblies
RF cable is used for all RF/wireless equipments.
GSM SYSTEM
GPS NAVIGATION SYSTEM
WIRELESS COMMUNICATION SYSTEM
ANTENNAS
CAR RADIO
TEST EQUIPMENT
MICROWAVE COMPONENTS
DATA TRANSMISSION
LAN SYSTEM
SATELLITE TRANSMISSION
AVIATION EQUIPMENT
COMPATIBLE CONNECTORS
SMA,SMB,SMC,MCX,MMCX
N,FME,TNC,BNC
MINI-UHF,UHF,F,ETC.
FAKRA,GT5.U.FL.W.FL.H.FL.SGC.IPEX
COMPATIBLE CABLES
IMPEDANCE 50Ω/75Ω/93Ω
RG405/U, RG402/U, RG316/U, RG223/U
RG188/U, RG179/U, RG174/U, RG142/U
RG141/U, RG59/U, RG58/U, RG8/U, RG6/U
LMR100,LMR400,SF141J
Ordering information:
| Part number | Connector | Cable | Length of cable |
| TOP-TNC-C01 | TNC-SMA(M) | RG58U | 10cm or customized |
| TOP-TNC-C02 | TNC-SMA(F) | RG174 | 10cm or customized |
| TOP-TNC-C03 | TNC-MMCX(M)straight plug | RG174 | 10cm or customized |
| TOP-TNC-C04 | TNC-MMCX(M)right angle plug | RG178 | 10cm or customized |
| TOP-TNC-C05 | TNC-MMCX(RA) | RG316 | 10cm or customized |
| TOP-TNC-C06 | TNC-open end(without welds) | RG316 | 10cm or customized |
| TOP-TNC-C07 | TNC-IPEX | 1.13/1.37 | 10cm or customized |
| TOP-TNC-C08 | TNC-U.FL | 0.81/1.13 | 10cm or customized |
| TOP-TNC-C09 | TNC-MCX(male) | RG316 | 10cm or customized |
| Notice: | 1. the connector at the end can be customized. |
| 2. the cable also can be made by others, customzied | | |
Key feature:
1. Connector : TNC Female to MCX ( Connectors could be customized , etc .)
2. Cable Type : Black RG174 ( Could be customized , like RG178 ,RG316 , LMR Cable , RG58 Cable, etc ; depends on your requirements .)
3. Cable Length : 20cm ( could be customized , like 50cm ,1 meter , 5 meters , 10meters , etc .)
| Cable Type(Name) | BNC male RG316 cable |
| Cable Length | 100mm (Customized Length Available) |
| Operating Frequency | DC0-3GHz |
| VSWR | ≤1.20 @DC-3GHz |
| Durability | ≥500 cycles |
| Waterproof Rate | IP68 |
| Operating Temperature | 45 °C-85 °C |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Ferule | Annealed Copper | Ni |
| Bandwidth 100MHZ |
Application:
- configurations for broad compatibility with commercial RF and consumer electronics applications.
- WiMAX
- IBurst
- Zigbee®
- Bluetooth Wireless®
- MIMO
- IEEE 802.11 a/b/g/n
- Wi-Fi
- WLAN
- Wireless Ethernet
- RFID
- UWB
- GSM,GPRS,CDMA,GPS antennas and Adaptor
Our Cable :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
