Black / White Rubber Duck 433mhz Receiver Antenna Waterproof Wifi Antenna
Introduction
TOP-433-4 is one of our smallest 433MHz antennas. With a short length, it makes this antenna suitable for places with limited space.
Using a high quality SMA connector ensure that there are no
losses with the connection
It comes with either a SMA, RP-SMA which are the most common connector types for most all of the popular routers on the market.
normal length of the cable type: 48mm, 58mm
normal connector type: SMA Male straight, SMA male right angle
Color: black, white or customized
FEATURES
› Tuned to the 433MHz band
› SMA termination
› Very short length at 48mm /58mm
› Uses strong molded rubber
1. Impedance:50Ω
2. Frequency Range: 433Mhz
3. Gain:2 Dbi
4. Standing wave:1.46Dbi
5. Material: brass with nickel
6. Insulator: PTFE
special in the sale of 3G/4G/GSM/WIFI/GPS antennas RF coaxial connectors, adapters, cable assemblies etc, and especially provides custom services for these products
Description
Talk Range: 1.5-3km
Storage Channel: 16
Dimensions: D9*58MM /D9*48MM
SPECIFICATIONS
| Model | TOP-433-04 |
| Frequency Range-MHz | 433MHZ | |
| Gain-dBi | 2 |
| VSWR | ≤1.5 |
| Input impedance-Ω | 50 |
| Polarization | Vertical |
| Maximum Power-W | 20 |
| Connector Type | SMA-J |
| Weight-g | 8 |
| Installation | Butt |
| Construction | Mould rubbervvvv |
Click here to find the data sheet:
TOP-433-04.pdf

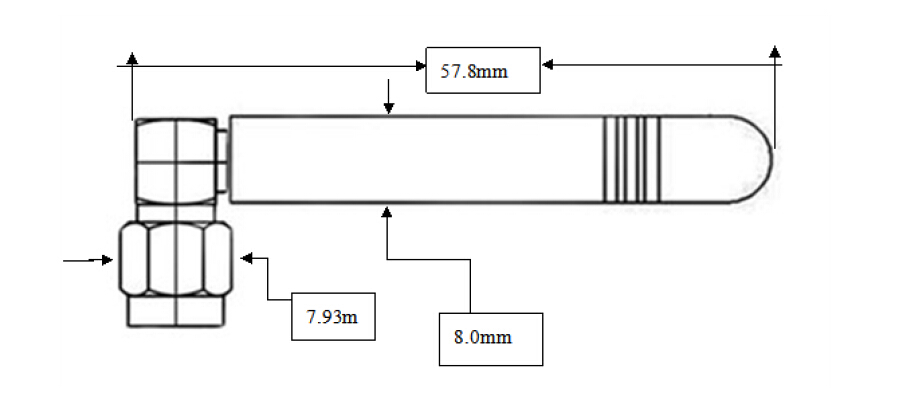

DIMENSIONS (Unit:mm)

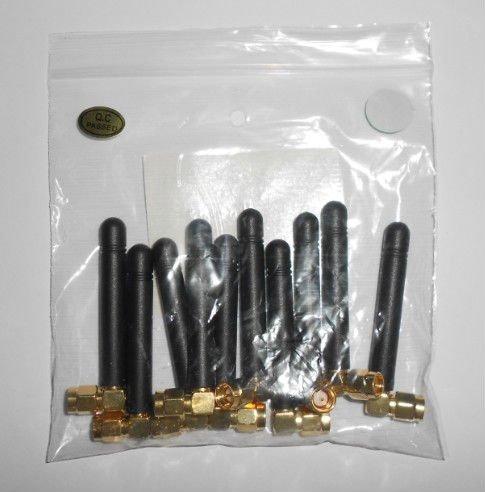

Packing:
Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
