FF300R12KT4 1200V 300A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Heavy Industrial Drives and High

FF300R12KT4 1200V 300A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Heavy Industrial Drives and High Power UPS

Features

• High-Power Dual IGBT Module: 1200V / 300A

• Low VCE(sat) (Low Conduction Loss)

• Low Switching Losses

• High Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package Design

• Integrated Temperature Sensor (NTC)

• Industrial Grade Reliability

Applications

• High-Power Industrial Motor Drives for pumps, fans, and heavy machinery.

• Uninterruptible Power Supplies (UPS): High-capacity three-phase systems.

• Solar Inverters: Central and string inverters for PV systems.

• Welding Equipment Power Supplies.

• General-Purpose High-Power Inverters and Converters.

Description

The FF300R12KT4 is a robust dual IGBT module designed for high-performance power conversion in demanding industrial applications. It features a 1200V blocking voltage and a high current rating of 300A. Utilizing advanced IGBT and freewheeling diode technology, it achieves a low collector-emitter saturation voltage (VCE(sat)) for reduced conduction losses and optimized switching characteristics for efficiency. Built for industrial durability, it offers high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package to ensure stable and reliable operation in high-power systems.

INFORMATION

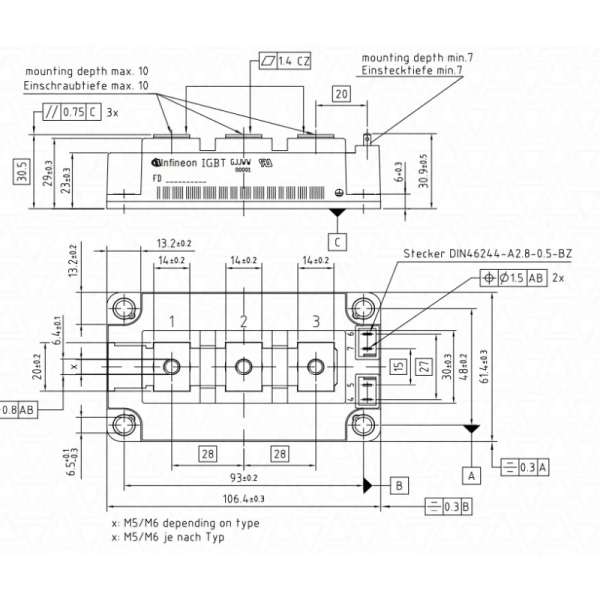

Drawing
