Multiple Cellular Embedded 4G LTE Module MC7305 MINI PCI-E Card
Overview:
is the new 4G module from Sierra Wireless that support 4G LTE Band 1/3/7/8/20. The 4G module MC7305 provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS
Technical Specifications:
* Chipset: MDM 9215 Qualcomm
* Form Factor: PCIe M.2
* Pins: 52-pin
* Technologies: LTE,HSPA+,UMTS,GPRS(Class 12),GSM,EDGE,HSDPA
* Frequency bands
- LTE: 2600/1800/2100/900/800 MHz
- WCDMA: 850/900/1900/2100 MHz
- GPRS/EDGE: 850/900/1800/1900 MHz
- GPS: 1575.42MHz
- GLONASS: 1602MHz
* Data rates:
- Downlink 100Mbps (20MHz bandwidth), 50mbps (10MHz bandwidth)
- uplink 50Mbps (20MHz bandwidth), 25mbps (10MHz bandwidth)
* MIMO Support
* Temperature: -25 ℃ to 60 ℃
* Certifications: CE, GCF, NCC (Taiwan)
* Carriers Approved: Vodafone, Telstra
* Voice Support: None
| GPS Support: | Yes |
| Interfaces: | |
| USB |
| SIM Connector | Y |
| Connectorized | Y |
| Serial Interfaces | USB 2.0 High Speed |
| Number GPIO Ports | 6 |
| Number PWM Ports | 0.0 |
| Number ADC Ports | 0.0 |
| Number Flashing LED ports | 1 |
| Supply Voltage (V) | 3.0 to 3.6, nominal 3.3 |
| Size (mm) | 51 x 30 x 2.75 |
| RF Connector | U.FL |
| Operating Temperature (°C) | -25 to +60 |
| Audio Port | No |
| Mounting | Connectorized |
| Main Connector | Mini PCIe |
Features
- LTE module for Australian frequencies
- Falls back to all 3G networks
- Optimised for low power consumption
- Support for Linux and Windows 7 and Windows 8
- Antenna diversity for improved fringe performance
- Enhanced location services (A-GPS, GPS Xtra, GPS, G
Modem Information:
• LTE / DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA) / EDGE / GPRS operation
• Multiple (up to 16) cellular packet data profiles
• Traditional modem COM port support for AT commands
• USB suspend / resume
• Sleep mode for minimum idle power draw
• SIM application tool kit with proactive SIM commands
• Enhanced Operator Name String (EONS)
• Automatic GPRS attach at power-up
• GPRS detach
• GPRS detach only
• Combined GPRS / IMSI detach; MS-initiated and network-initiated detach
• Mobile-originated PDP context activation / deactivation
• Support QoS profile

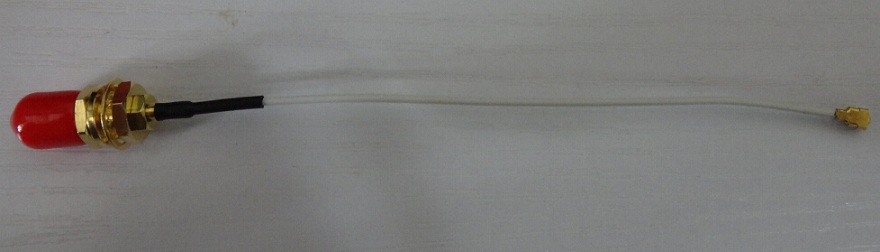

accessories:
