Low Power RF Module LTE 4G Module HL7618 with Cat 1 Air Interface
Region: Primarily for North America
Introduction:
HL7618 is a 4G-LTE cat 1 module primarily for North America.
Supported frequency bands are: 4G-LTE B4 (1700), B13 (700) FREE unlimited FOTA, AirVantage Cloud ready.
As an option to soldering, adding flexibility, the HL series Snap-in socket can be soldered on the same PCB pattern. The AirPrime® HL Series modules is the smallest, scalable, flexible solution in a compact and easy-to-integrate form factor that is completely interchangeable among 2G, 3G, and 4G technologies.
Advantage:
HL7618 is optimised for IoT and M2M applications where for example low cost and low power consumption are key parameters. Very low power consumption. Separate base band and PA power supply inputs simplifies power supply design and extend operational life for battery powered devices.
Specification:
| Air interface: | 4G-LTE cat 1 |
| 4G Bands: | B4 (1700), B13 (700) |
| Carrier: | Verizon |
| Peak data rate: | DL 10 Mbps, UL 5 Mbps |
| Form factor: | CF3 SMD LGA package, |
| Size | 22 x 23 x 2.5 mm |
| Supply Voltage: | 3.7 V nominal, max 4.5 V |
| Operating Temperature: | -40°C to +85°C |
Feature:
Control, Software and Features
Control options: AT Commands
Internet services: TCP, UDP, FTP, HTTP, HTTPS, SMTP, POP3, SSL
Host OS: Android, Linux, Windows
FOTA: Free and unlimited through AirVantage
Cloud service: AirVantage Cloud ready
Network scan and monitoring
Jamming detection
Antenna detection
Interfaces
1x UART, 8 wire
1x USB 2.0 Full Speed
1x ADC
12x GPIO
1x VGPIO
2x System Clock Out
1x Active Low RESET
1x Active Low POWER ON
1x SIM interface: 1.8/3V
1x Tx On
1x RF Rx/Tx port
1x Debug
1x JTAG
1x Backup Battery
Application:
- Global coverage on a single module (2G/3G variants) with industry and mobile network certifications to get you to market faster
- GNSS receiver (2G/3G variants) enables tracking and location-based services

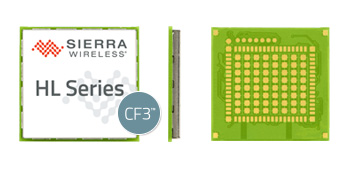

Product show:
